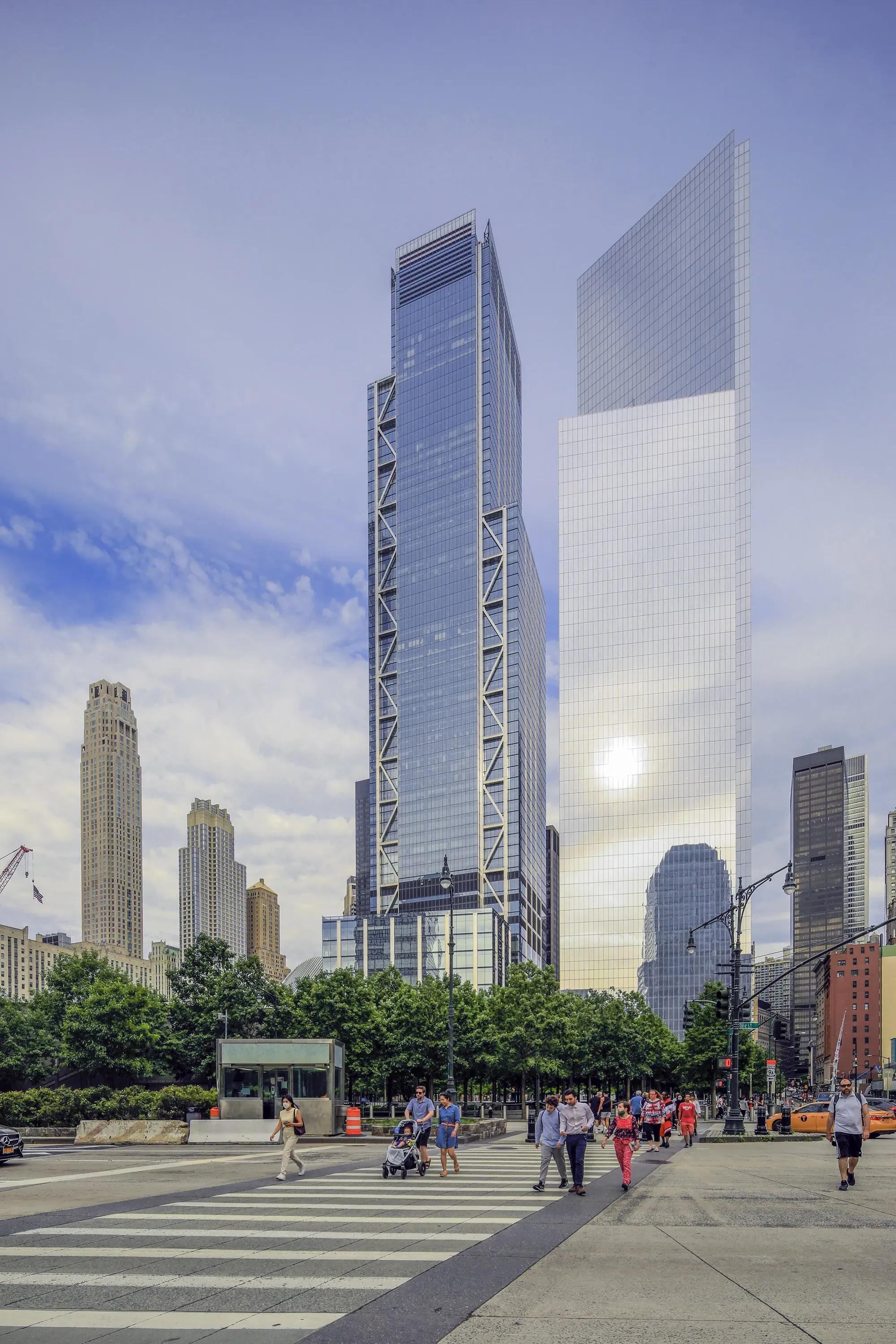

3 World Trade Center is an 80-story tower that integrates 2.5 million square feet (232,000 square meters) of office space with five levels of retail. The in New York City tower directly connects to the Oculus, home to the World Trade Center PATH station, 12 subway lines, and dozens of retailers.

To support one of the city's most momentous redevelopment projects, CAST CONNEX collaborated with the project team to develop and deliver highly visible architecturally exposed structural steel (AESS) castings for key connections seen from the triple-height lobby.

Tall Building Structure

Owner: The Port Authority of NY and NJ

Developer: WTC Properties LLC, an affiliate of Silverstein Properties

Architect: RSHP

Structural Engineer: WSP

General Contractor: AECOM Tishman

Steel Fabricator: Owen Steel Company Inc.

3 World Trade Center (3 WTC)

Connecting the multi-story Retail Redevelopment-East concourses with the Oculus pathway below required a robust and reliable support system for the building's vertical transportation (escalator) infrastructure. The architecturally expressive design, combined with unique loading conditions, demanded a solution capable of efficiently transferring forces while articulating the character of the supporting structure. To support the multi-story glass escalator landings, the scheme included partially suspended floors, steel walkway trusses, and built-up structural steel box girders complete with custom steel castings.

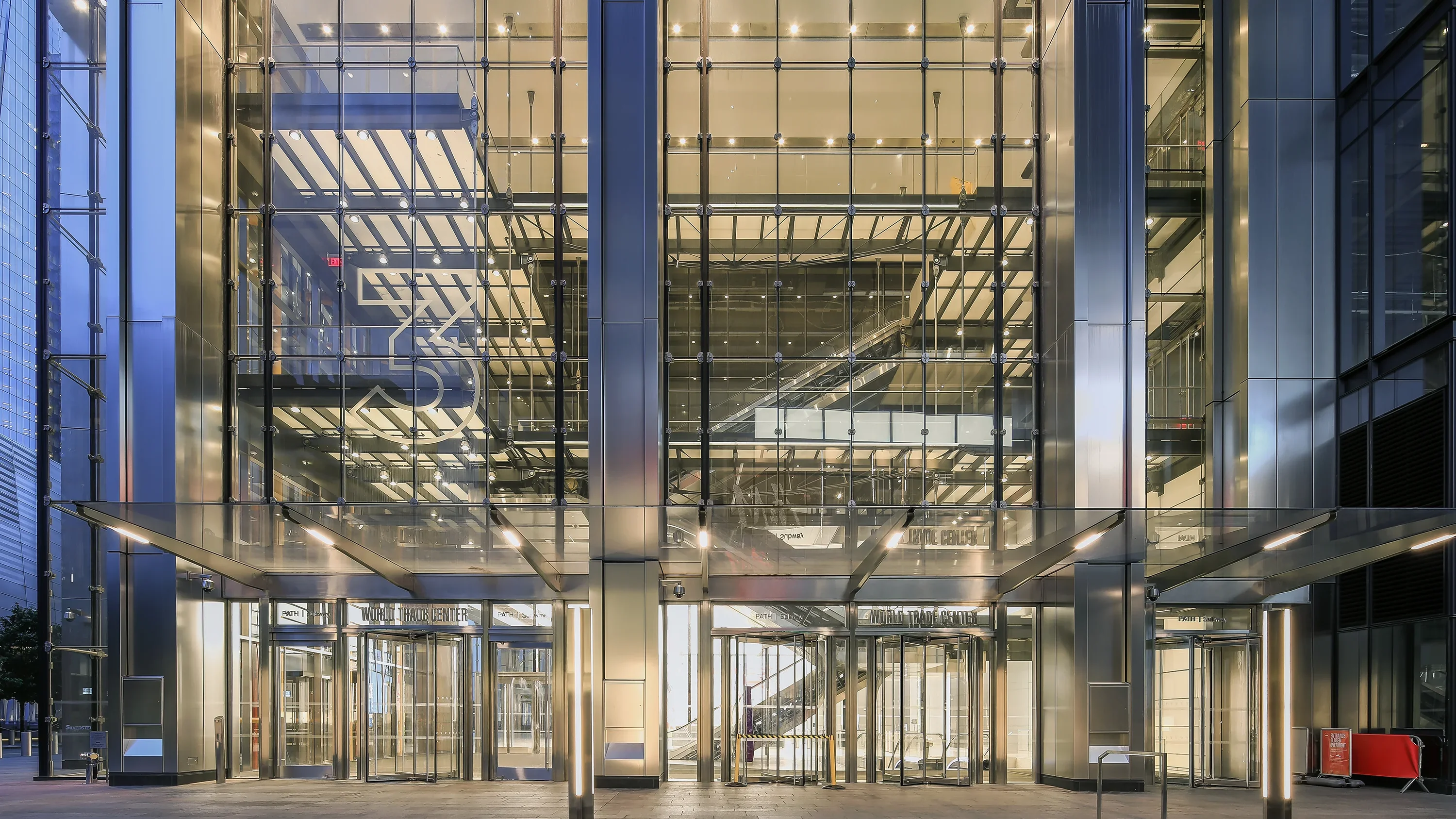

The 3 World Trade Center lobby connection to the Oculus pathway below

‍

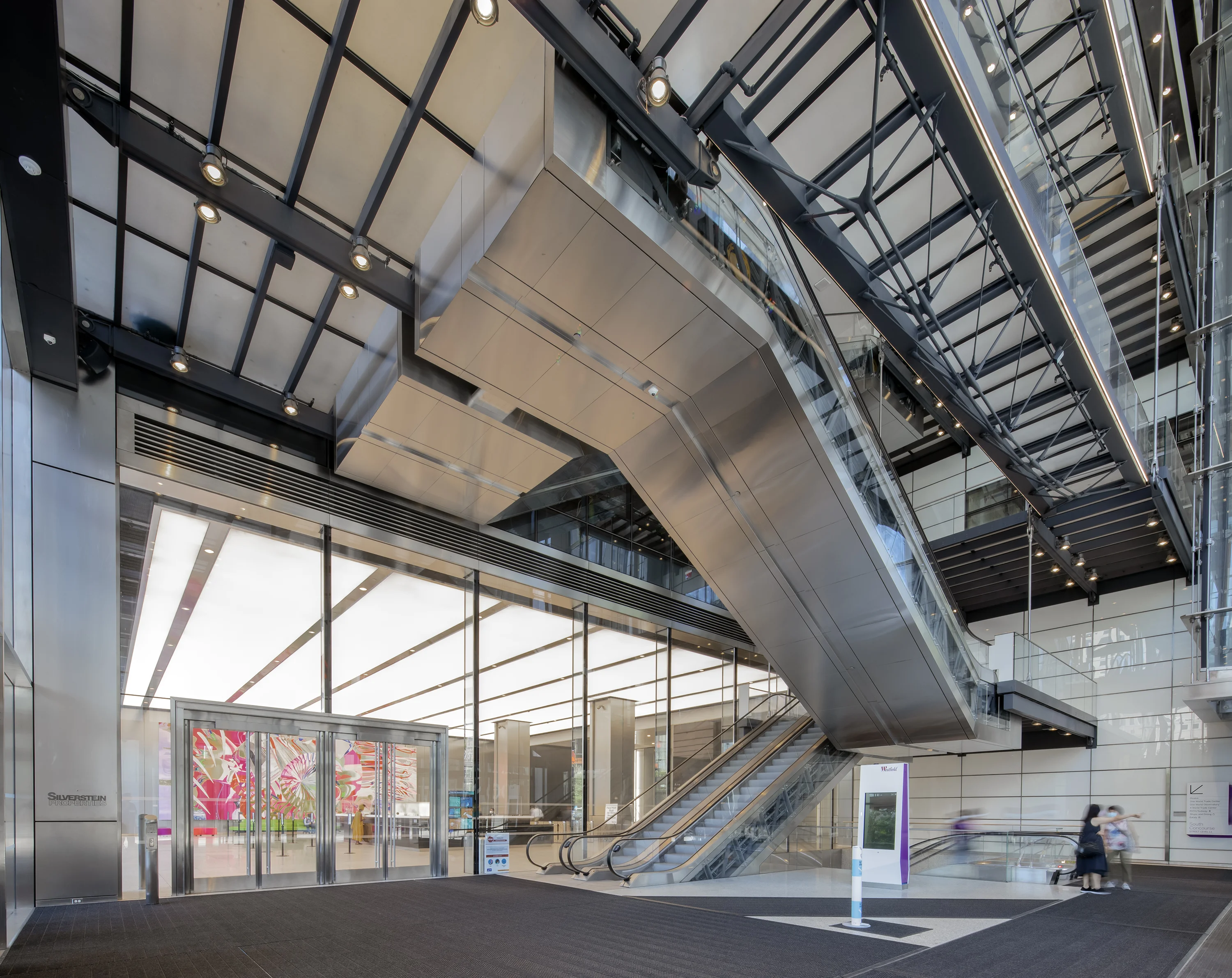

The suspended escalators and glass floor of the 3 World Trade Center multi-story retail area

‍

Leveraging the geometric freedom of steel castings, CAST CONNEX designed custom clevis connectors with recessed reveals incorporated into the casting form. The connectors were welded to the ends of the built-up box girders creating dramatic pin-connection details that complement the surrounding architecture.

The AESS castings deliver refined geometry and superior surface quality that would be difficult to achieve using traditional steel fabrication methods.  The result is a structural connection that performs as both an engineered solution and a visible architectural feature.

Design-Built Structural Solution

CAST CONNEX offers design-build services for custom-cast steel nodes and components. We leverage steel casting manufacturing to offer our clients unparalleled opportunities for optimization and beauty in structural form.
3 World Trade Center (3 WTC)

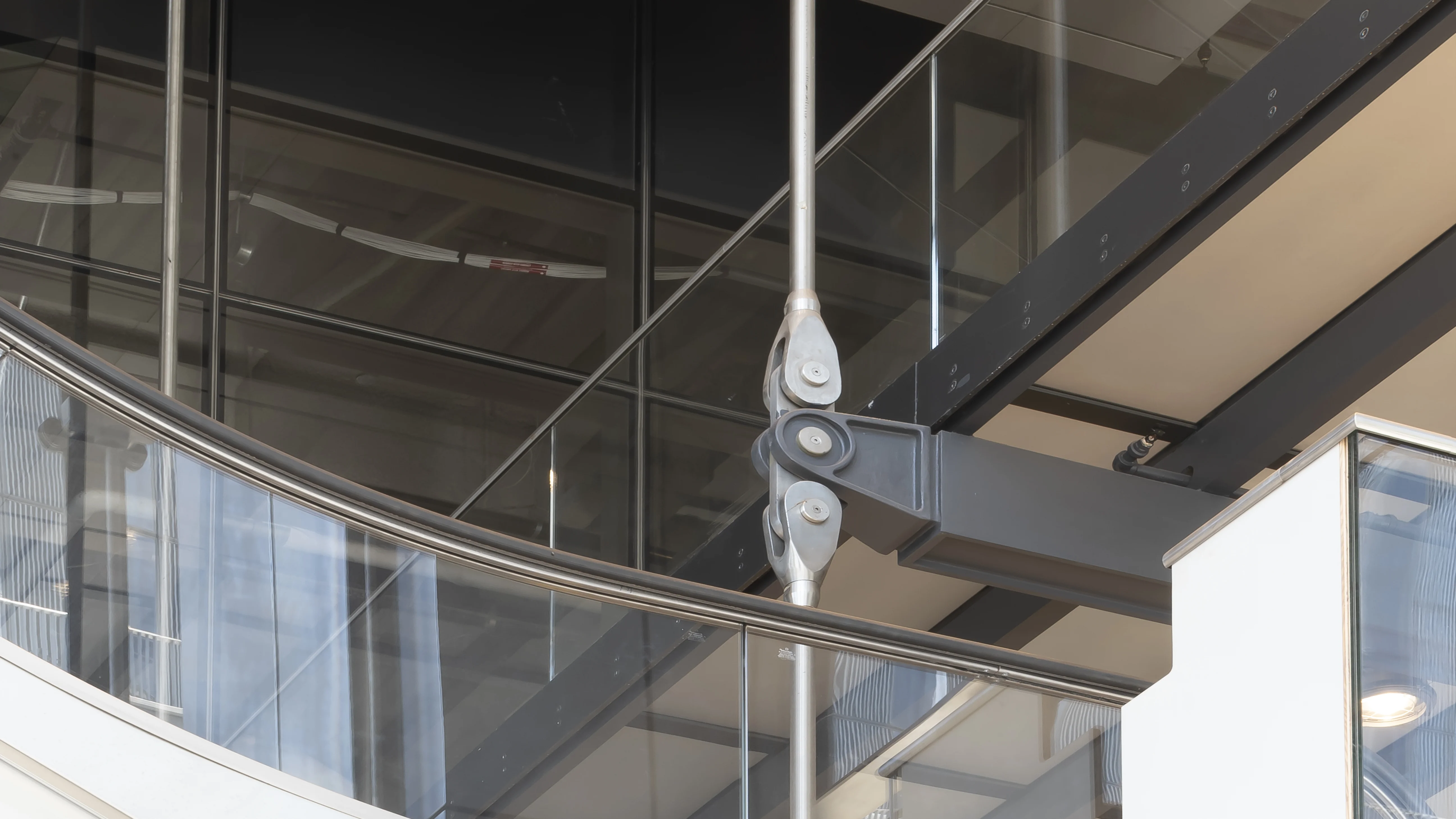

CAST CONNEX custom clevis connectors with recessed reveals.
3 World Trade Center (3 WTC)

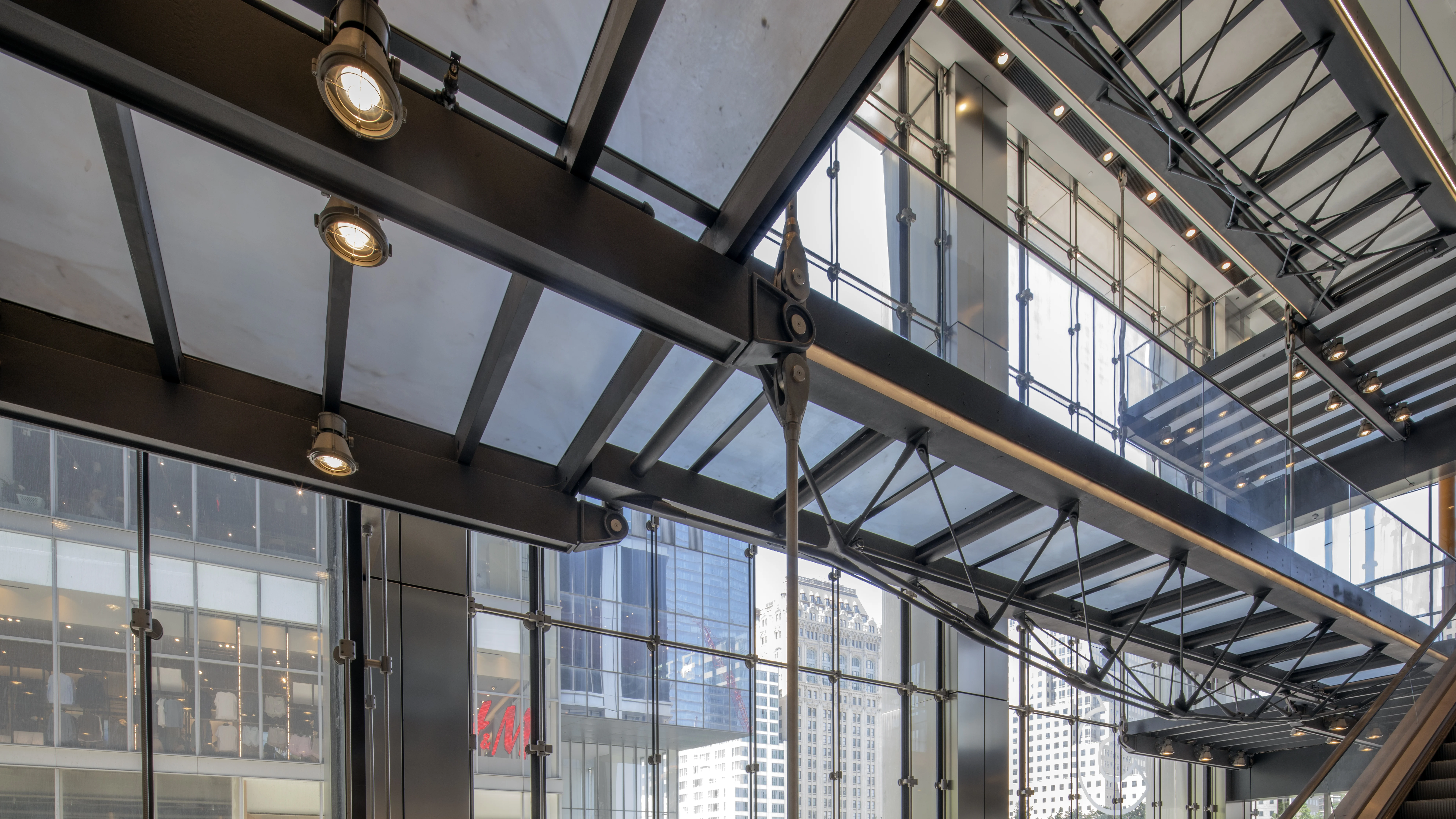

The highly visible AESS connectors were welded to the ends of the built-up box girders creating dramatic pin-connection that complements the surrounding architecture.
