Inverted Lake, Ned Kahn
Daniels Corporation commissioned artist Ned Kahn to design an environmentally dynamic installation for their Toronto Waterfront development. Situated in a plaza between two buildings, ‘Inverted Lakes’ serves to enhance the overall ambiance and placemaking experience while acting as a windbreak.

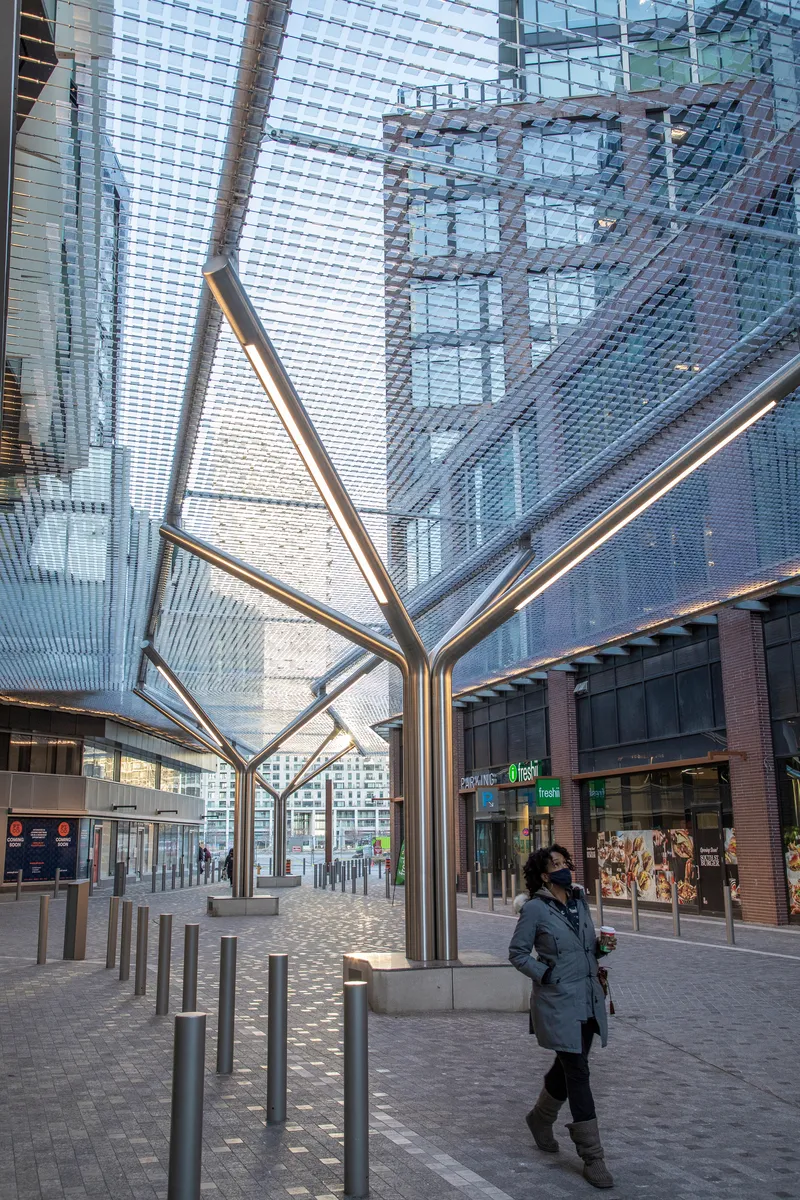

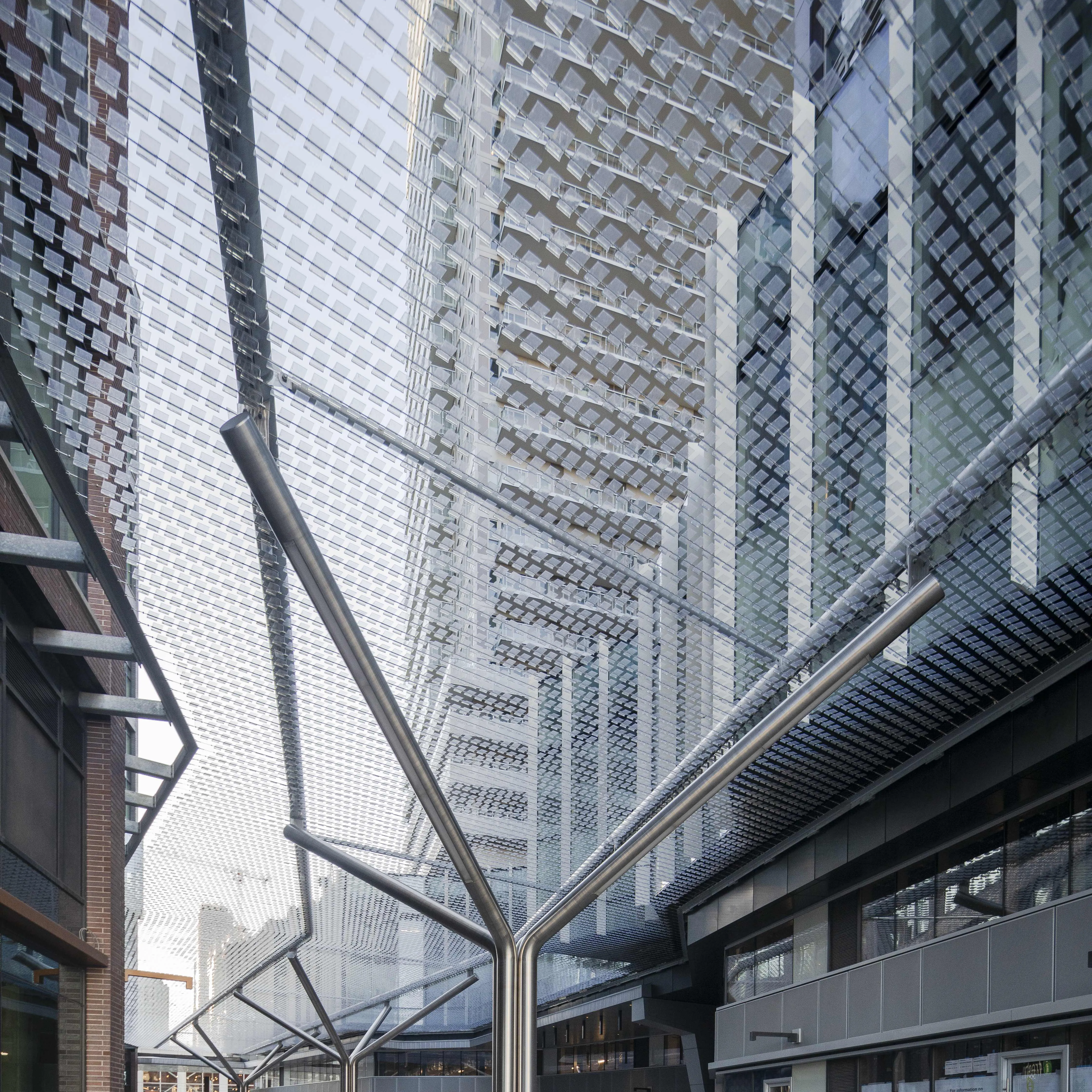

The structure includes tree-like features that support a structural steel horizontal canopy featuring over 4.4km of steel cables and 26,000 polycarbonate panels. Each panel reacts with the wind, swaying and spinning to mimic the waves and reflectivity of Lake Ontario. CAST CONNEX Diablo Bolted Splices (DBS) are strategically placed along the horizontal HSS canopy members by the steel fabricator, Heavy Experience.
Owner: Daniels Corporation
Artist: Ned Kahn Studios
Structural Engineer: Blackwell
Steel Fabricator: Heavy Experience
Share:
.png)
%20-%20Heavy%20Industries%20-%202nd%20Main%20Image.webp)

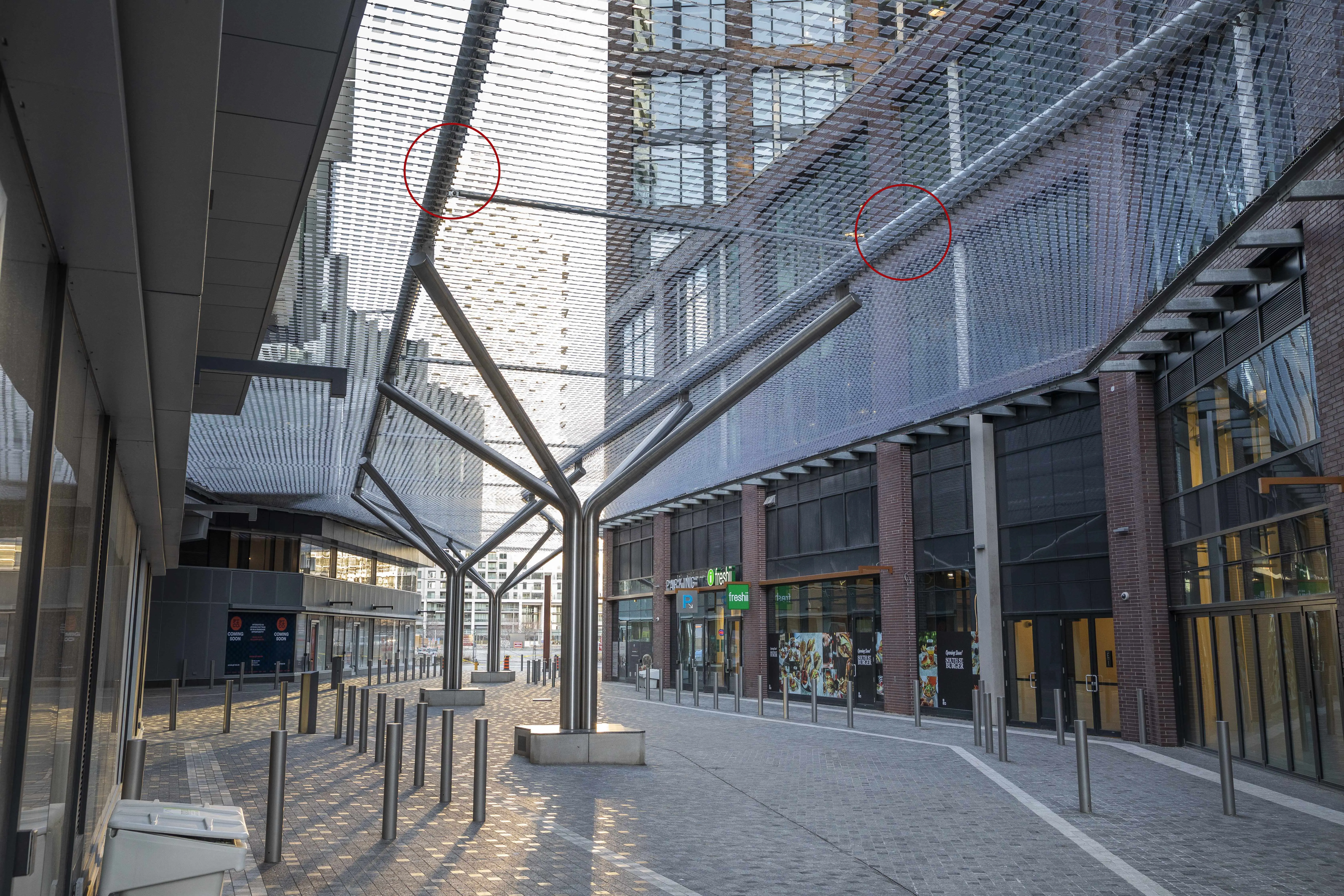

The use of the DBS supported constructability in the narrow plaza, and the ingenious use of cover plates over these bolted joints helped the splices virtually disappear from view, completing the continuous look and feel of this creative space.
%20-%20Philip%20Castleton%20-%20DBS%20Location.webp)
%20-%20Philip%20Castleton%20-%20Grid%201.webp)
%20-%20Philip%20Castleton%20-%20Grid%203.webp)
%20-%20Heavy%20Industries%20-%20Grid%202.avif)
Products Used On the Project
