CAST CONNEX Diablo™ Bolted Splices are cast steel fittings that enable unobtrusive field bolted splices in circular hollow structural section (HSS) members.
FEATURE/PRODUCT
UPC
ART
ART+UPC
DBS
TEC
HSC
CBB
SYC
HIB
CML
Pre-engineered and Available off the shelf
Vastly Simplifies Fabrication Efforts
Eliminates Field Welding
Type B
Fits a range of HSS and Pipe
Provides High Quality AESS Connection with Limited Additional Craftsmanship
Designed for use in Seismic Force Resisting Systems

Download Data Sheets

Get Access

By creating an Account on our service, you agree to subscribe to newsletters, marketing or promotional materials and other information we may send. However, you may opt out.

  • Specification Guidelines

  • CAD Files

  • Installation Guides

  • Etc

Heading

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5
Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

  1. Item 1
  2. Item 2
  3. Item 3

Unordered list

  • Item A
  • Item B
  • Item C

Text link

Bold text

Emphasis

Superscript

Subscript

This is a Headline

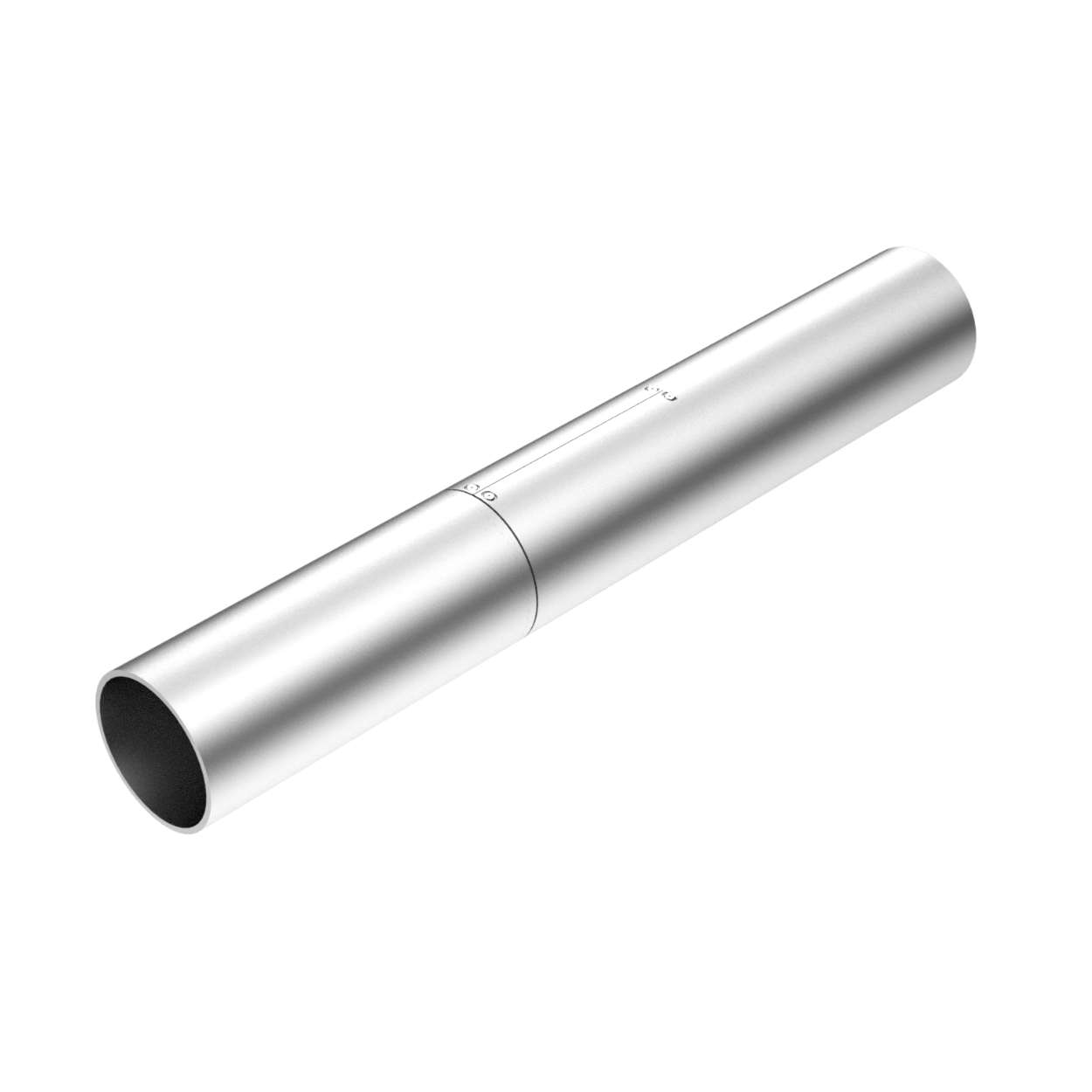

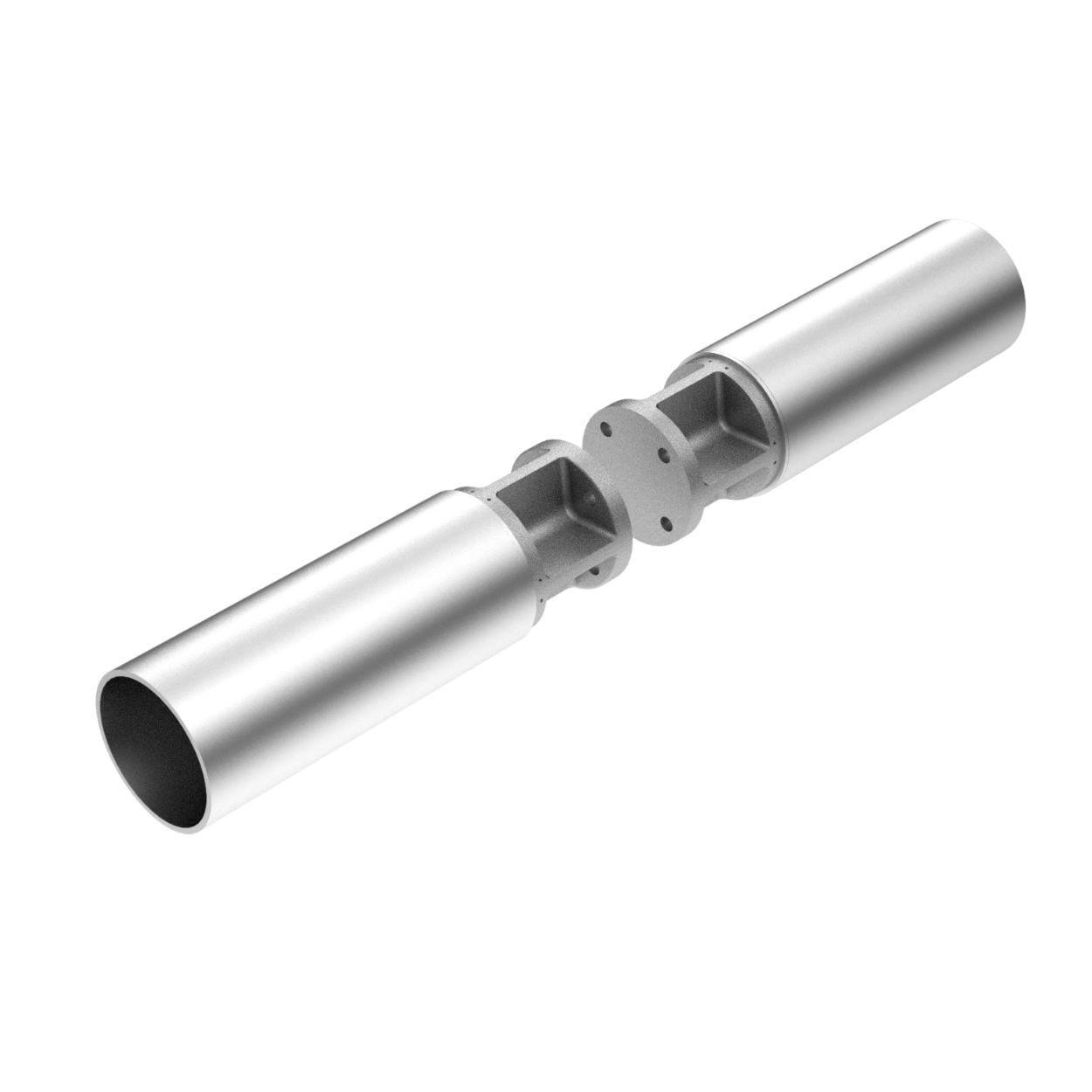

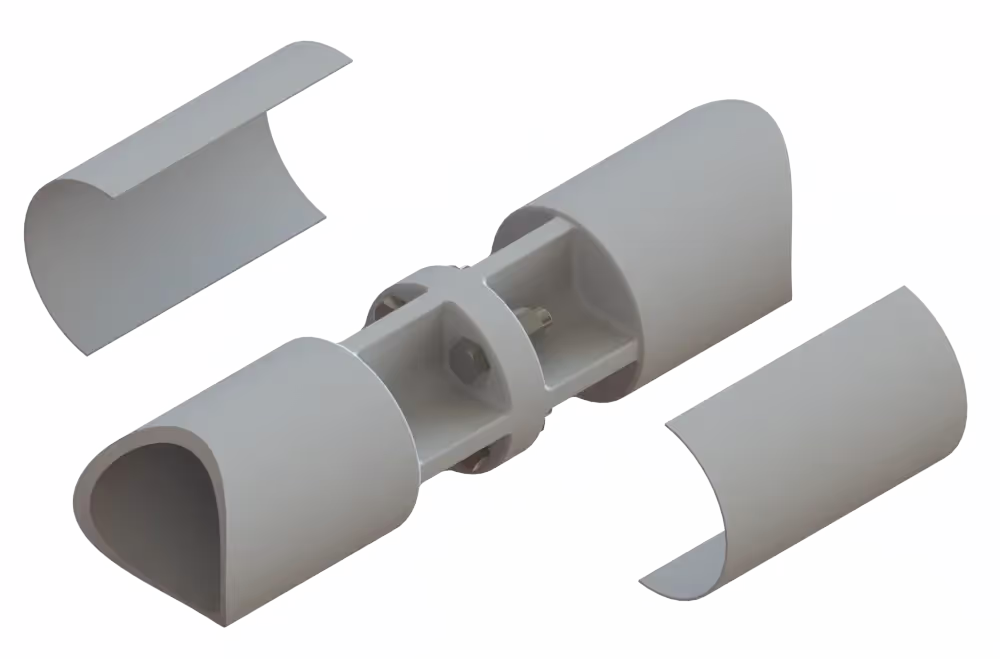

The fittings are designed such that the bolted connection is inboard of the outer diameter of the HSS. Splices made with Diablo Bolted Splices can be sheathed in thin-gauge plate to completely conceal the splice or can be left uncovered for a sleek, technical connection aesthetic.

This is a Headline

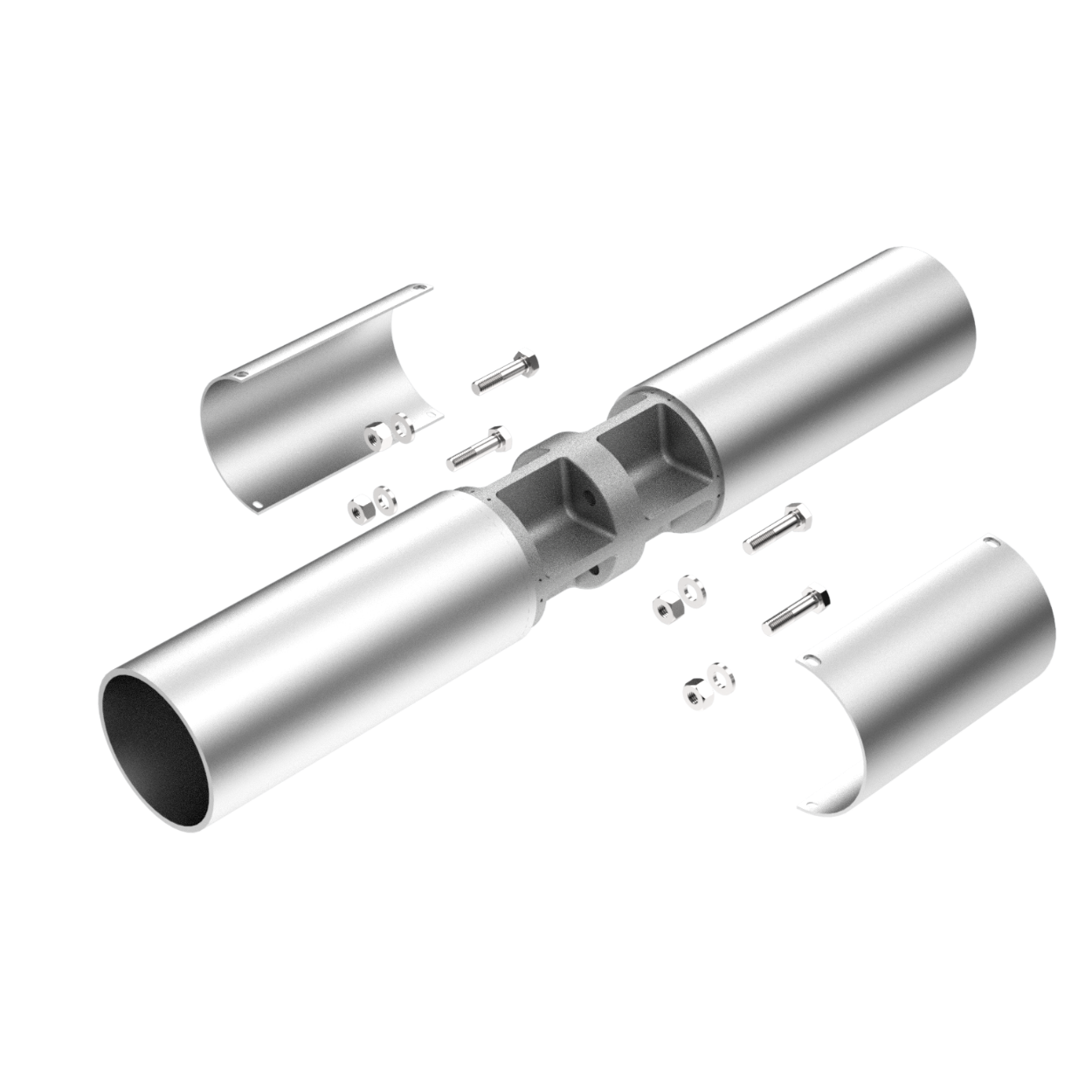

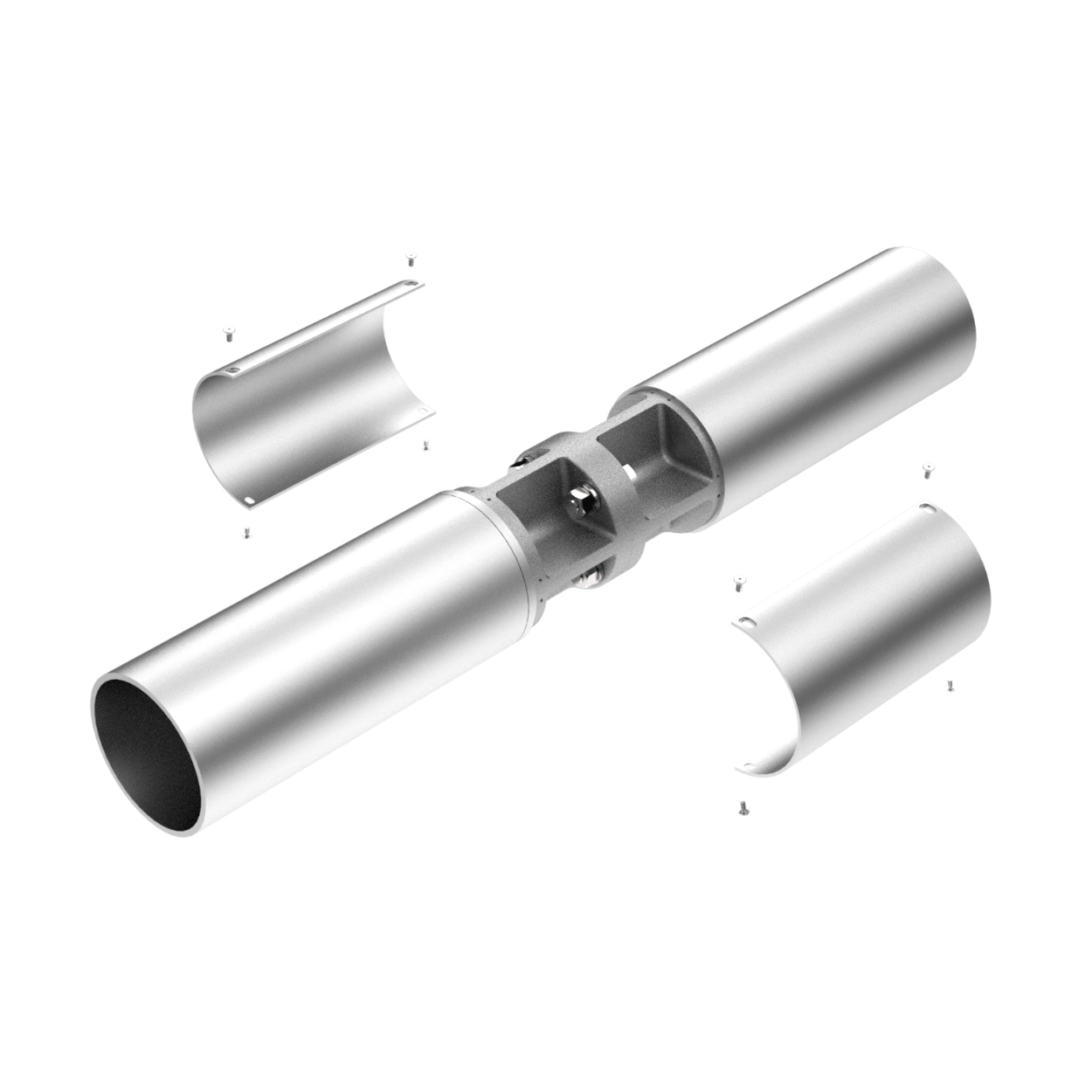

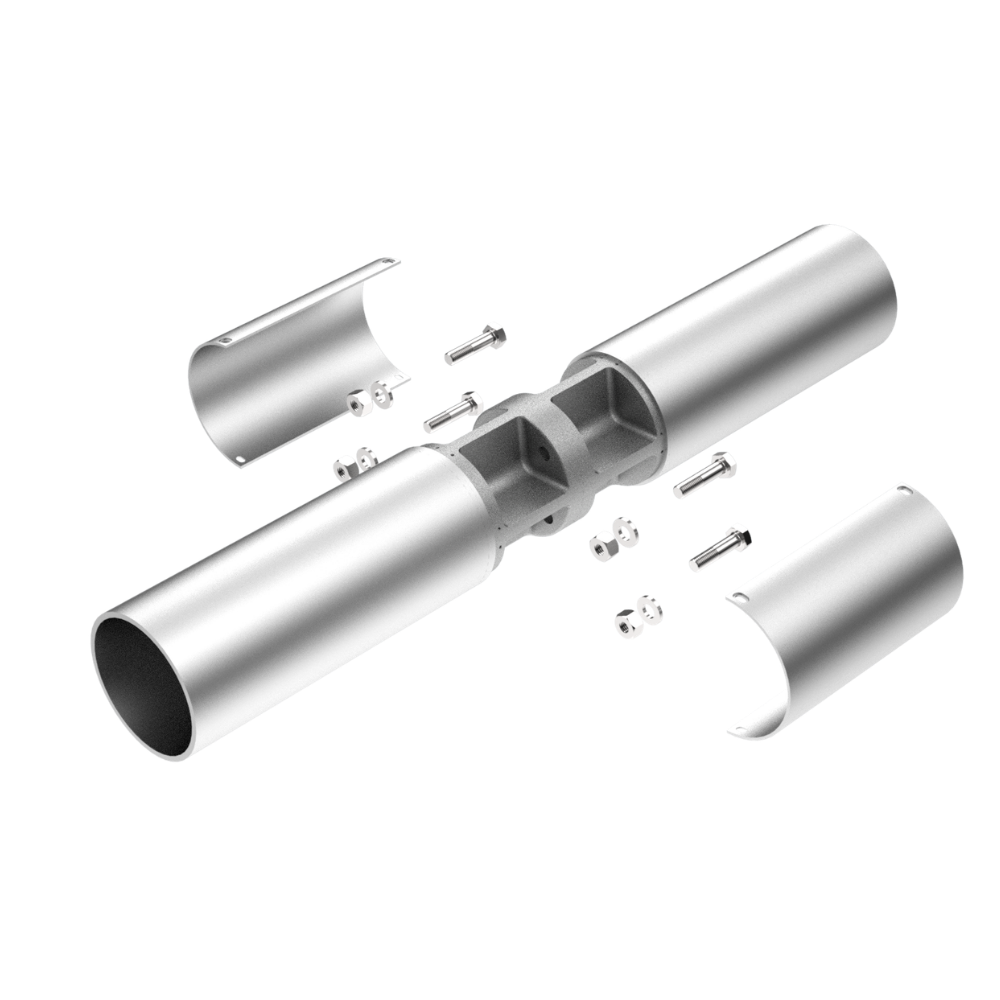

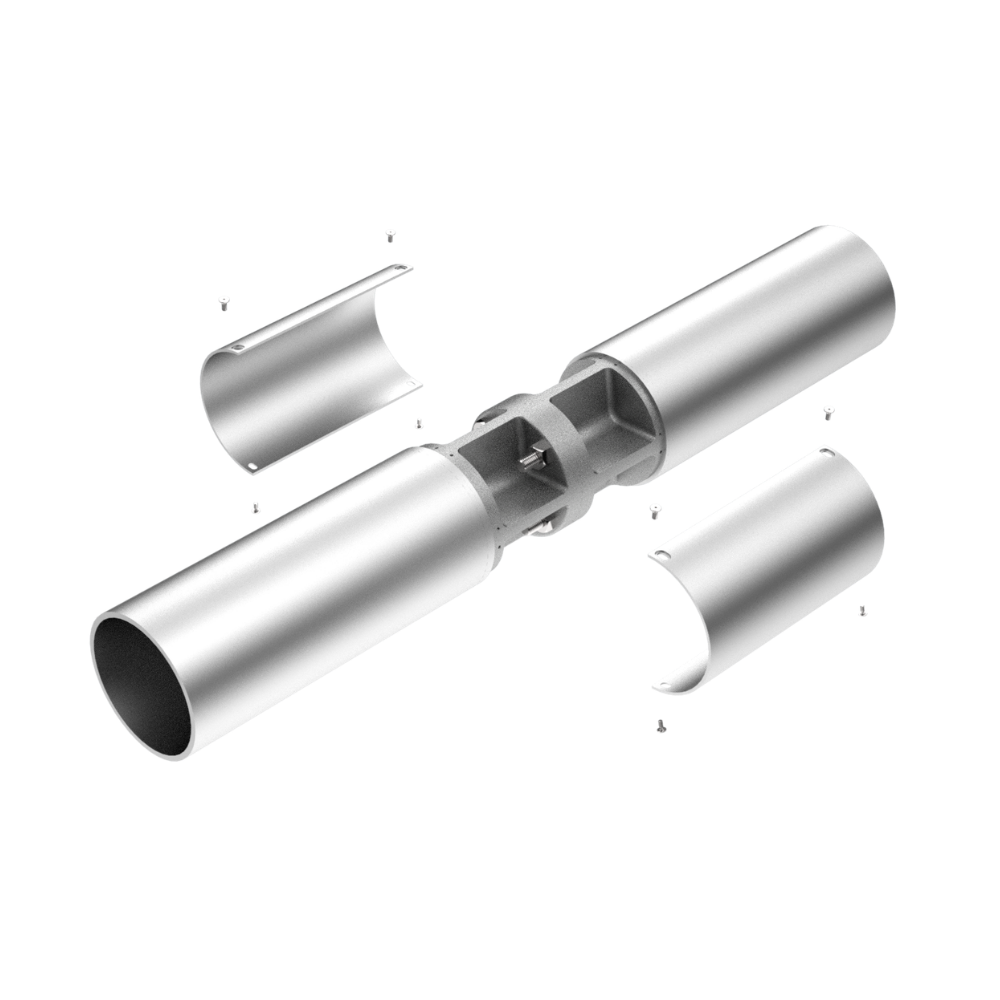

Diablo Bolted Splices are supplied including drilled bolt holes. All of the fittings can accommodate four fasteners, though our fittings for 12.75-inch (324 mm) outer diameter HSS can also be supplied to accommodate 8 fasteners. Hand wrenches must be used for bolt tensioning in the field. Fasteners are not included and cover plates (if required) are sold separately.

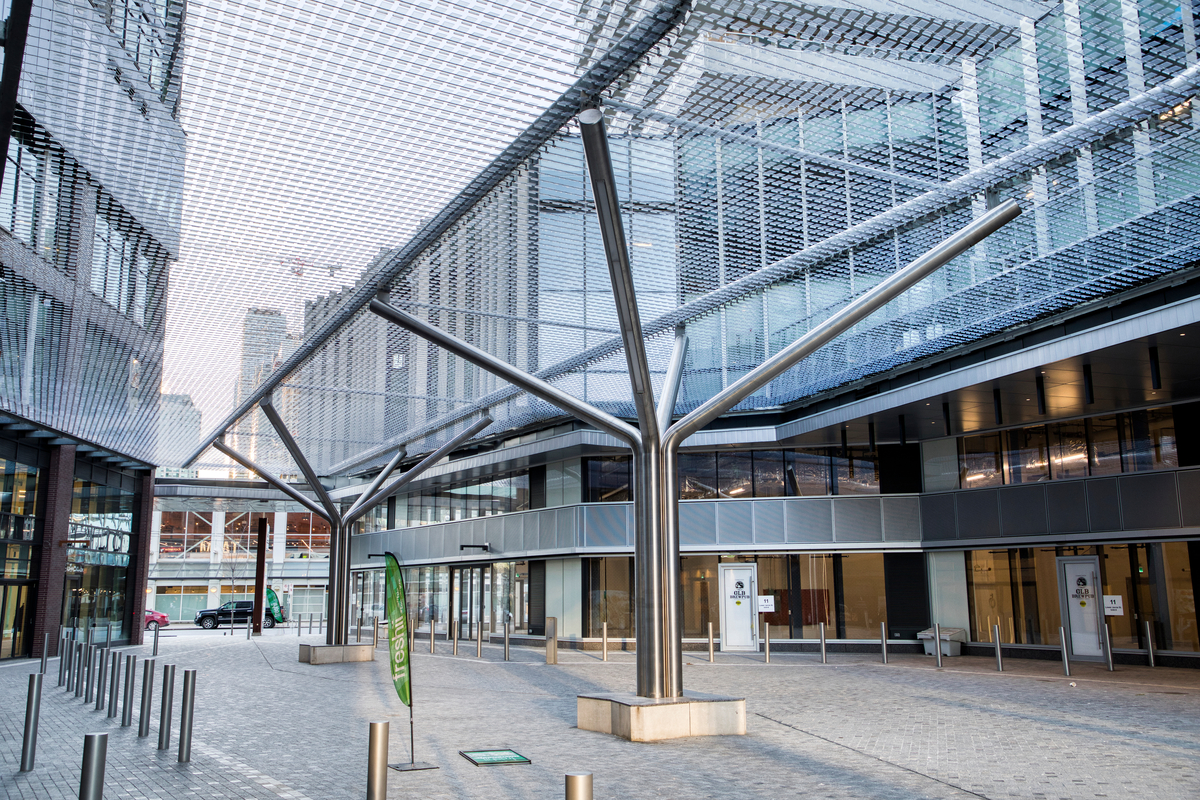

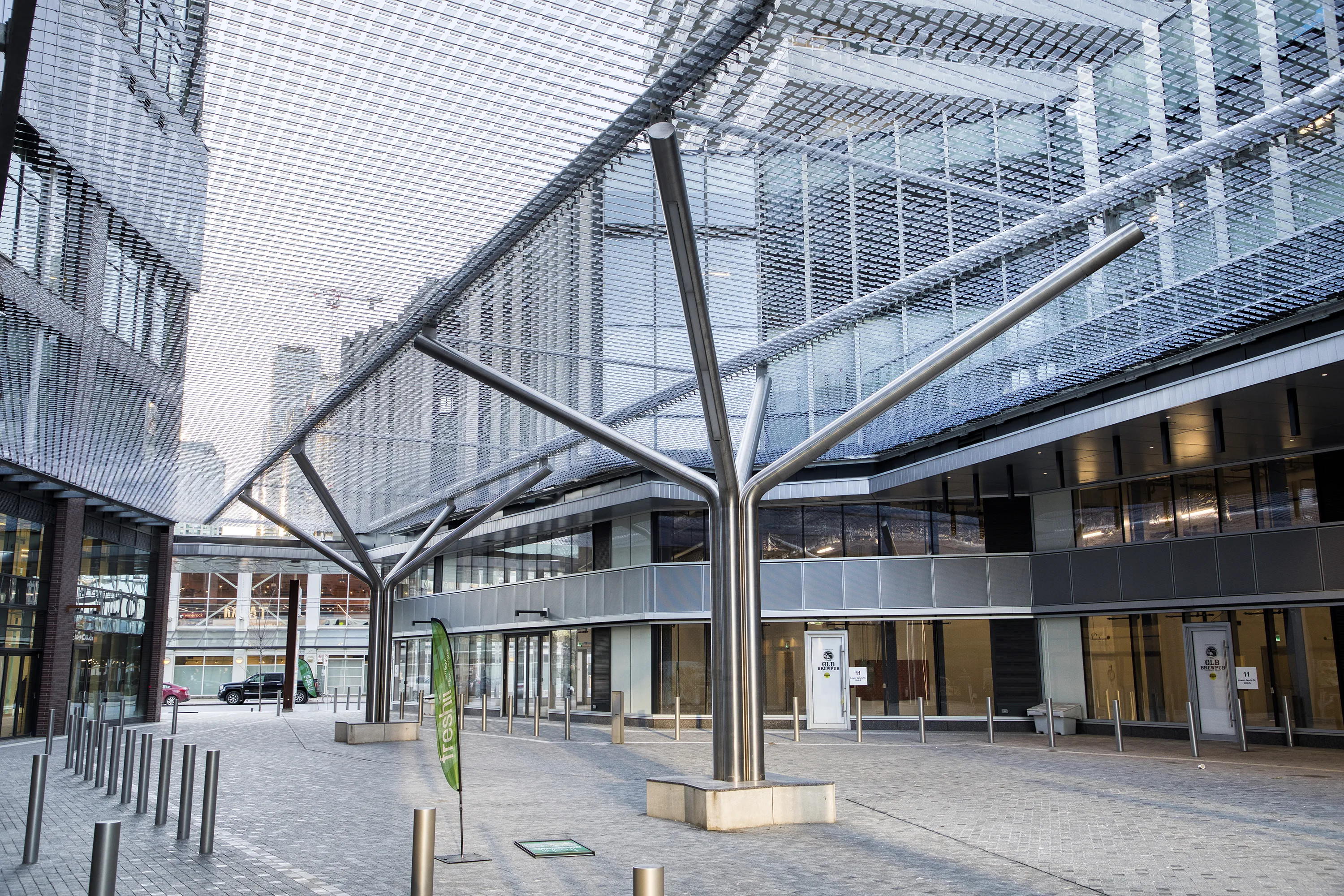

We provide design-build services

CAST CONNEX specializes in the engineering and provision of cast steel components for building and bridge structures.
