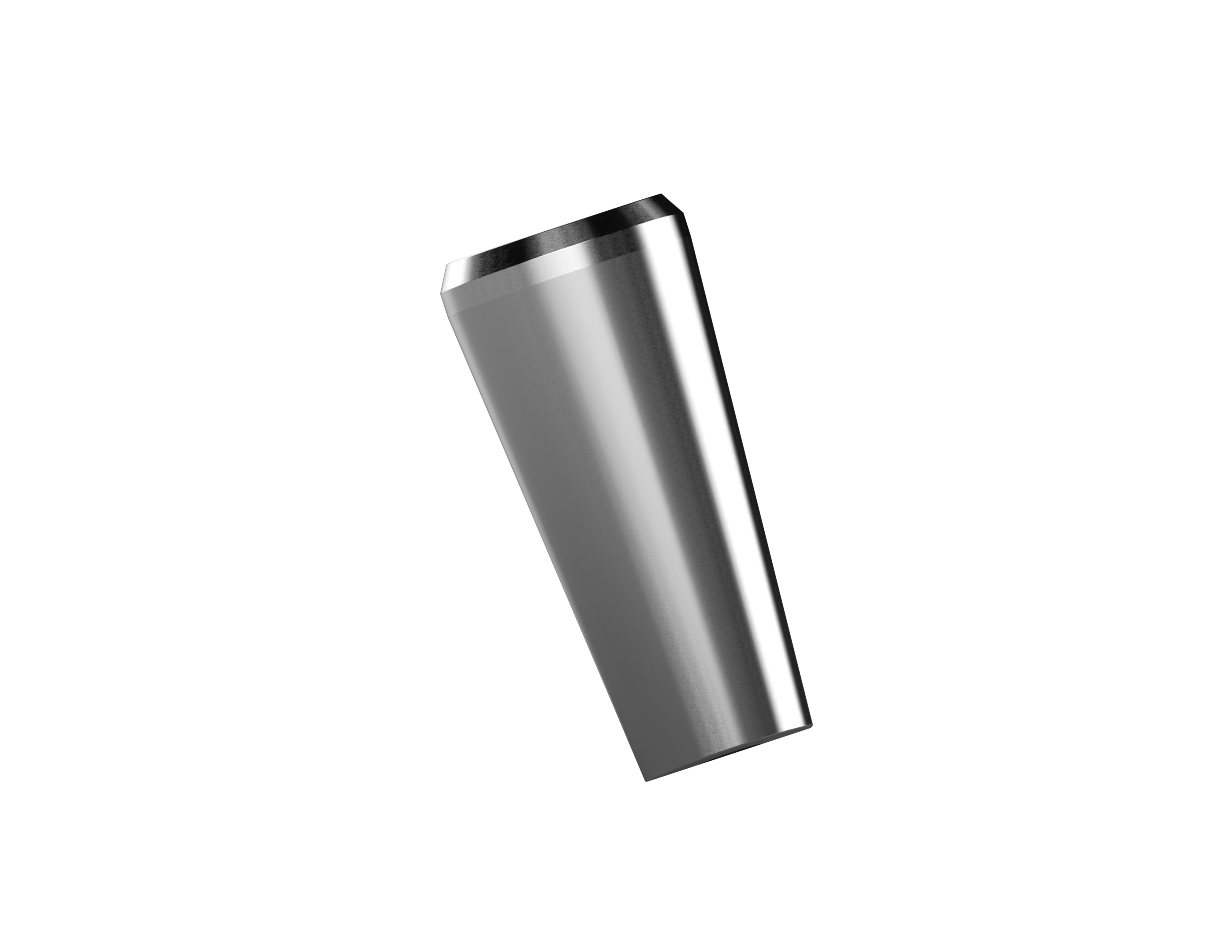

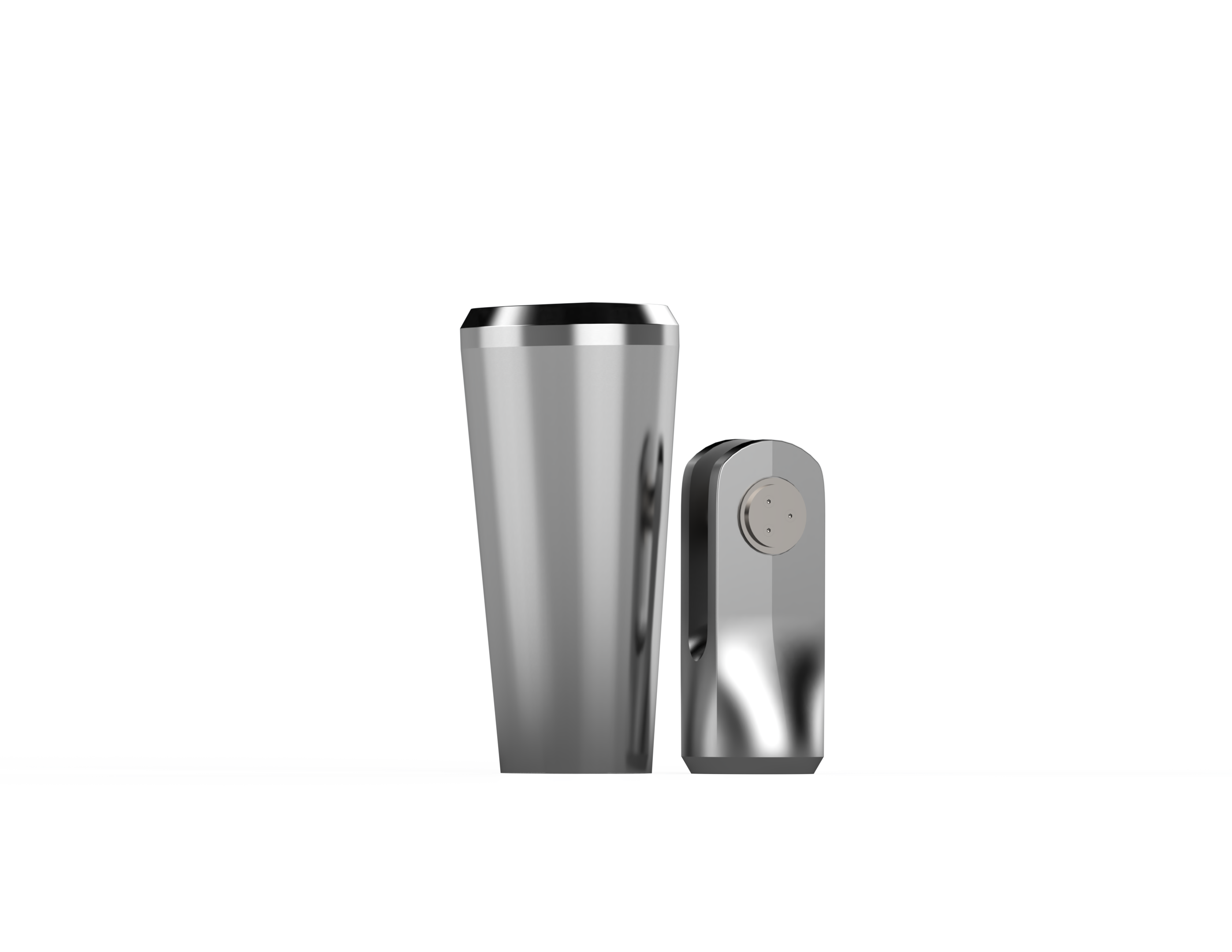

When used together, CAST CONNEX Architectural Tapers™ and CAST CONNEX Universal Pin Connectors™ lend a slender appearance to columns, braces, struts, or other structural members. The end condition also enables the use of a smaller-sized Universal Pin Connector than would otherwise fit the structural member.
FEATURED/PRODUCT
UPC
ART
ART+UPC
DBS
HSC
CBB
SYC
HIB
CML
Pre-engineered and Available off the shelf
Vastly Simplifies Fabrication Efforts
Eliminates Field Welding
Type B
Fits a range of HSS and Pipe
Provides High Quality AESS Connection with Limited Additional Craftsmanship
Designed for use in Seismic Force Resisting Systems

Download Data Sheets

Get Access

By creating an Account on our service, you agree to subscribe to newsletters, marketing or promotional materials and other information we may send. However, you may opt out.

  • Specification Guidelines

  • CAD Files

  • Installation Guides

  • Etc

As fabrication of true-pin connections to hollow structural section (HSS) members is difficult, particularly when aesthetics are a concern, the use of Universal Pin Connectors and Architectural Tapers vastly simplifies the design, detailing, and fabrication of critical architecturally exposed structural connections and significantly improves the aesthetic value of the finished assembly.

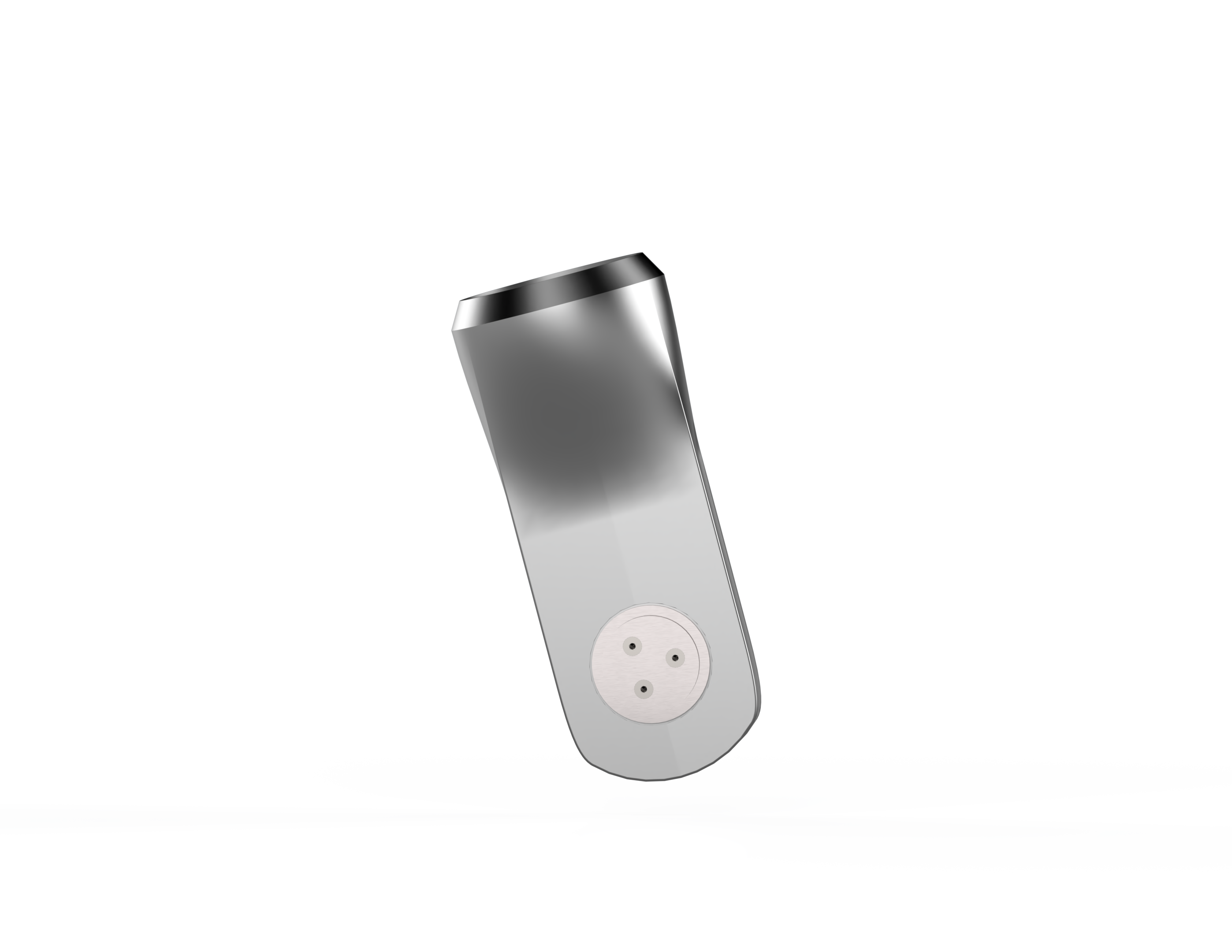

Universal Pin Connectors are a complete connection solution, as they are supplied with the associated carbon steel pins and electropolished stainless steel washers, cap plates, and cap screws.

More slender-appearing structural elements. Smooth, curving transitions from every viewpoint eye-catching end connections for compression struts, column bases, truss web members, or anywhere a load bearing true-pin connection is desired connection details provided with tabulated connection capacities dramatically simplified fabrication and a fraction of the grinding that typically accompanies AESS consistent and reliable architectural appearance.

TEKLA Warehouse Plugin

The CAST CONNEX UPC and ART Plugin for Tekla makes detailing round Hollow Structural Section (HSS) or Pipe members fitted with CAST CONNEX® Universal Pin Connectors™ (UPC), Architectural Tapers™ (ART), and/or Architectural Taper + Universal Pin Connector (ART+UPC) easy and accurate.

Download Here

We provide design-build services

CAST CONNEX specializes in the engineering and provision of cast steel components for building and bridge structures.
